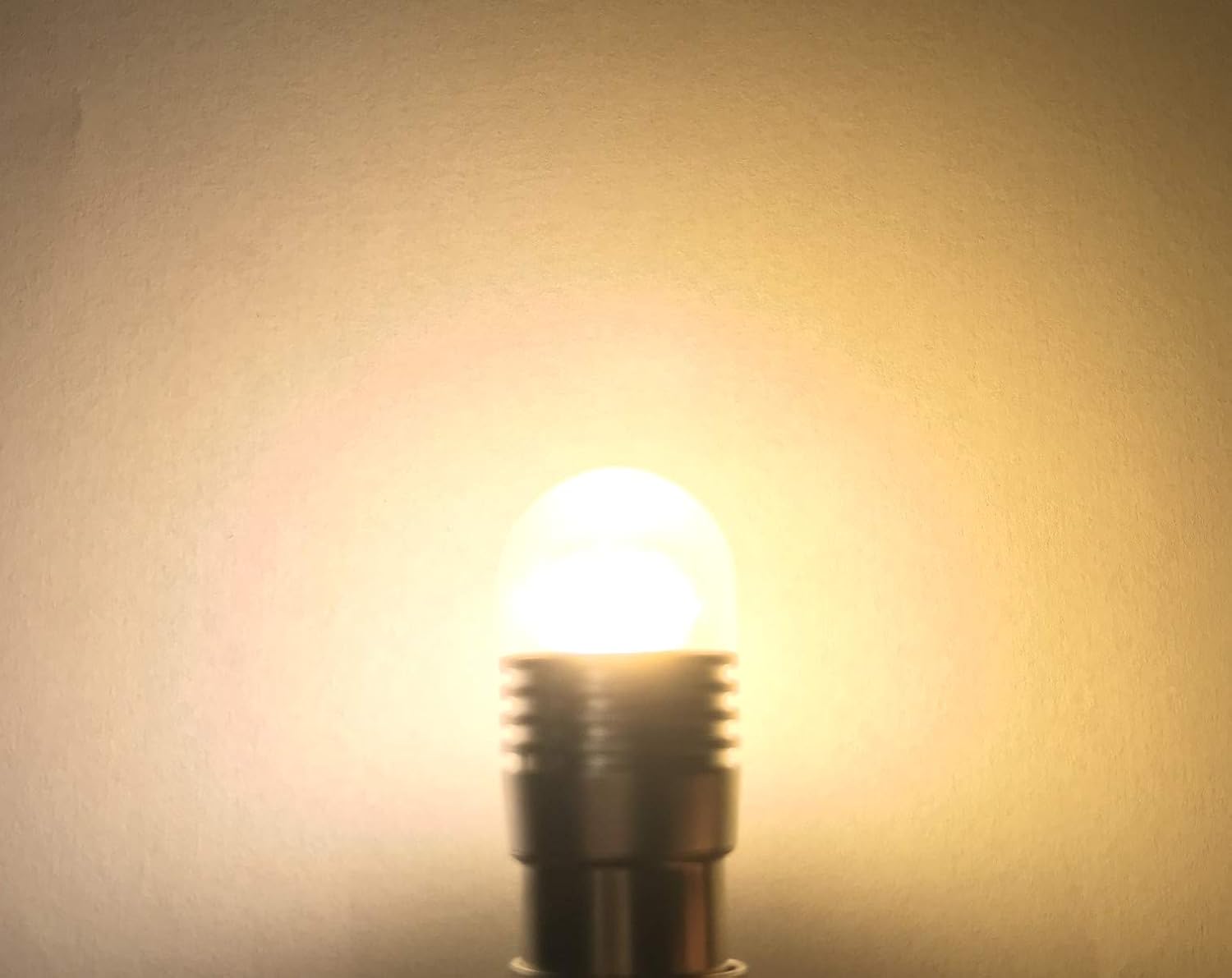

#1004 LED Extreme Performance Replacement Bulb | All-Weather Marine Stern Light, Anchor Light, RV | 500 Lumens, BA15D Base (D.C. Bayonet) Replaces: 1142, 94, 1004, 306, 308 (Warm White)

Engineered as a true drop-in replacement for 10-30vdc S8 "pear shape" double-contact bayonet base (Ba15D) filament miniature light bulbs. Dimensions are marginally smaller to guaranteed no-questions replacement, but light source is exactly the same height to ensure no adverse affect to light projection in all fixtures, while providing more total light output. Diffuser lens is optimized to project perfectly balanced 360 omni-directional light to match the OEM filament style bulb. Virtually no heat generated and design life in excess of 10,000hrs.

• 【COMPATIBILITY】 10-30VDC Direct LED replacement for D.C. Bayonet (BA15D) filament/incandescent bulbs including【12/14VDC】 #1004, #1142, #94, MS15584-2, #1152, #1156DC, #1076, #1076IF, #1176, #1376, #2057 【24/28VDC】#306, #308, #1638, #1662, #1692 , #30T8, MS15584-15, MS15584-16
• 【EXTREME PERFORMANCE】 Developed specifically for applications such as marine & aerospace, where safety and reliability are critical. 500+ Lumens; Proprietary 3D Emitter provides perfectly balanced omni-directional light projection; Massive anodized aluminum heatsink for maximum thermal dissipation; Acrylic sealed optics for all-weather durability; 【SmarTemp Technology】Integrated thermal regulation stabilizes internal temperatures to eliminate premature failures due to thermal runaway.
• 【ELECTRICAL PARAMETERS】Input Voltage Range: 11-30VDC; Actual Wattage: 5.75watts (equivalent filament wattage: 36watts aka 2.8amps @12.8VDC); Current Draw: 450mA @12.8VDC; Polarity: Non-bias (positive or negative ground compatible)
• 【LIGHT CHARACTERISTICS】Effective Lumens: 500; Light Distribution: 360 degrees
